GRINDING AND POLISHING MACHINES FOR CYLINDERS AND ROLLS.
Innovative solutions and machines dedicated to the surface finishing of hydraulic cylinders and and rolls of any type and dimensions.
PERFORMANCES
The machine offered are suitable for the following operatons.
BELT GRINDING
Sizing of the products.
Creation of a target homogeneous roughness suitable to for the required application.
Removal of residual defects or machining marks.
FINAL POLISHING with ABRASIVE DISKS
Operation that might be required to reduce further the roughness of the products.
A MACHINE FOR EVERY NEED.
The machines provided are based on different concepts.
STX special versions for telescopic Cylinders of big and short dimensions, without eye.
STO Heavy grinding machine for big dimension cylinders elements.
LC grinding and polishing between centers for cylinders of big dimensions and heavy weight.
LCS Automatic polishing machine between centers through more stations with automatic handling.
ANCILLARY EQUIPMENT
The machine are equipped with appropriate handling to upkeep the productivity and required filtration systems
Al the machines are working with automatic set up on the dimensions of the products and are managed with PLC or other control systems for full automatic cycle.
Safety and sound proofing enclosures. Close the working area and prevent the access to the operator during automatic working cycle.
A touch screen panel integrated into the cabin and positioned in Front of each unit through a friendly graphic interface will help the operator to supervise the production cycle and to operate localized fine tuning of the machine during working operations.
Grinding and polishing of cylinders and rolls
Detail of LC for rolls

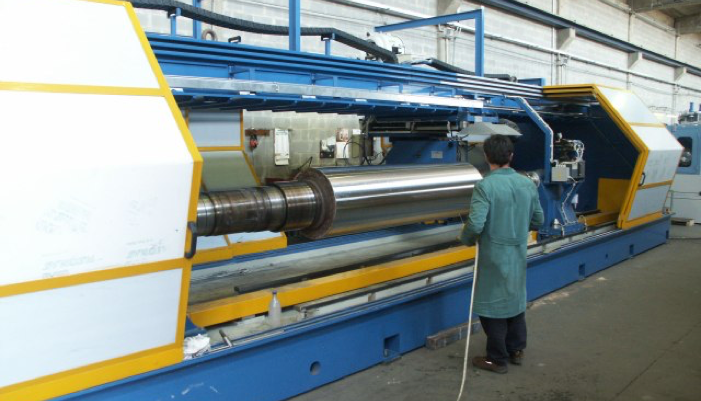

Roll after polishing on LC
Machine with pass throught system
Machine between centers
Belt polishing unit and tail stock
Belt polishing system
